How-tos

Update projects

Select a project from the project bar drop-down menu. An asterisk (*) beside the project name will indicate that the configuration has been changed (signal added, renamed or removed). Press “Save” for the changes to take effect.

New files will be generated and stored in the selected projects working directory. These files are then included via LinXManager.pri by a include directive in the *.pro file. Necessary code to access the configured signals are injected into main.cpp if the Qt project type is QML.

Supported project types

Both QML and Widget based Qt projects are supported by the configurator. QML projects have enhanced support and are automatically updated with the required code to have direct access in the GUI. Widget based project have the required files added to the project but needs to be included manually in the source.

Generated files

List of files which are generated and stored in the selected project when the configuration is saved:

• LinXManager.pri

• dataenginebase.cpp

• dataenginebase.h

• dataengine.cpp

• dataengine.h

• dataenginesignal.cpp

• dataenginesignal.h

• idataenginesignalerror.cpp

• idataenginesignalerror.h

• LinXManager_DE_configfile.json

• qtobserver.cpp

• qtobserver.h

Specific files generated from LinX Manager Fieldbus and added to the project:

• fieldbusaccesserror.cpp

• fieldbusaccesserror.h

• fieldbusaccesserrormodel.cpp

• fieldbusaccesserrormodel.h

• LinXManager_FA_configfile.json

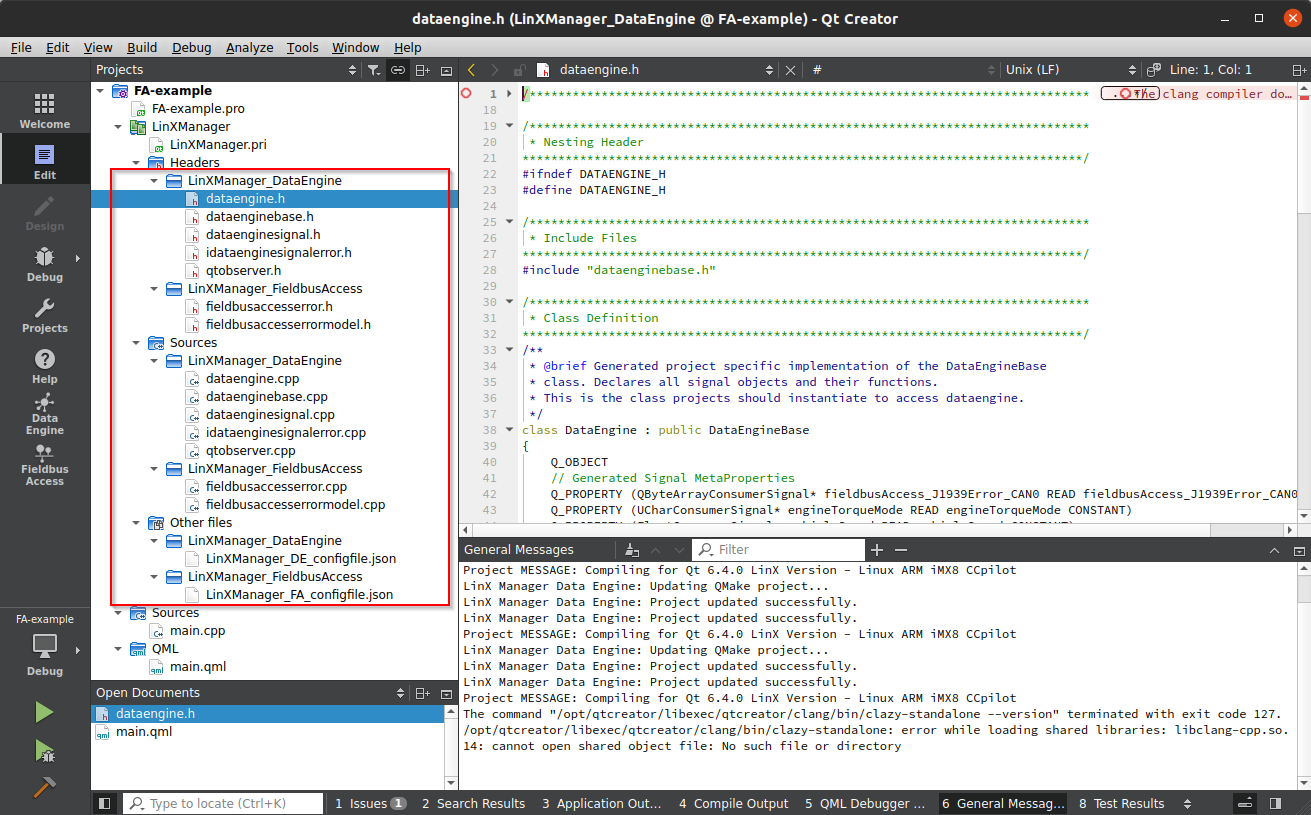

All the files can be seen in Qt Creator Project window:

Revert current changes

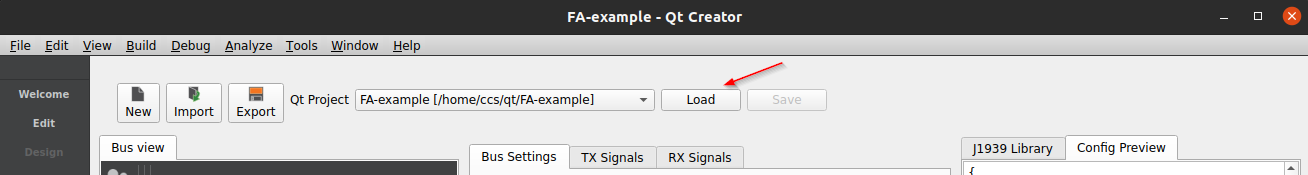

Use the “Load” button to restore the last known configuration and reject current changes.

Deploy and run Fieldbus Access with generated configuration

Configuration install path

Qt projects updated with the tool will have the Fieldbus Access configuration file added to the list of files to install when the project is deployed to a remote device.

Default target path for projects based on the CrossControl project templates are /opt/{TARGET}/bin where TARGET is the base name of the project file by default.

This results in a file path for the configuration: /opt/{TARGET}/bin/LinXManager_FA_configfile.json.

Update default Fieldbus Access configuration

A default configuration is added when Fieldbus Access is installed on the device, found at /opt/bin/FieldbusAccess_ConfigFile.json. Fieldbus Access will read this configuration files by default. To load a project specific configuration, replace the default configuration with a symbolic link, pointing to the deployed configuration.

1. Connect to your device via ssh.

2. Update the default FA configuration to point to your deployed configuration:

   ln –sf /opt/{TARGET}/bin/LinXManager_FA_configfile.json /opt/bin/FieldbusAccess_ConfigFile.json


3. Reboot the device for the changes to take effect.

There is no need to re-do the symbolic link once created. New configuration files can be deployed directly from Qt Creator. Remember to reboot the device for the configuration to be read.

Import a configuration

The import feature allows a project to be updated with a predefined/reused configuration.

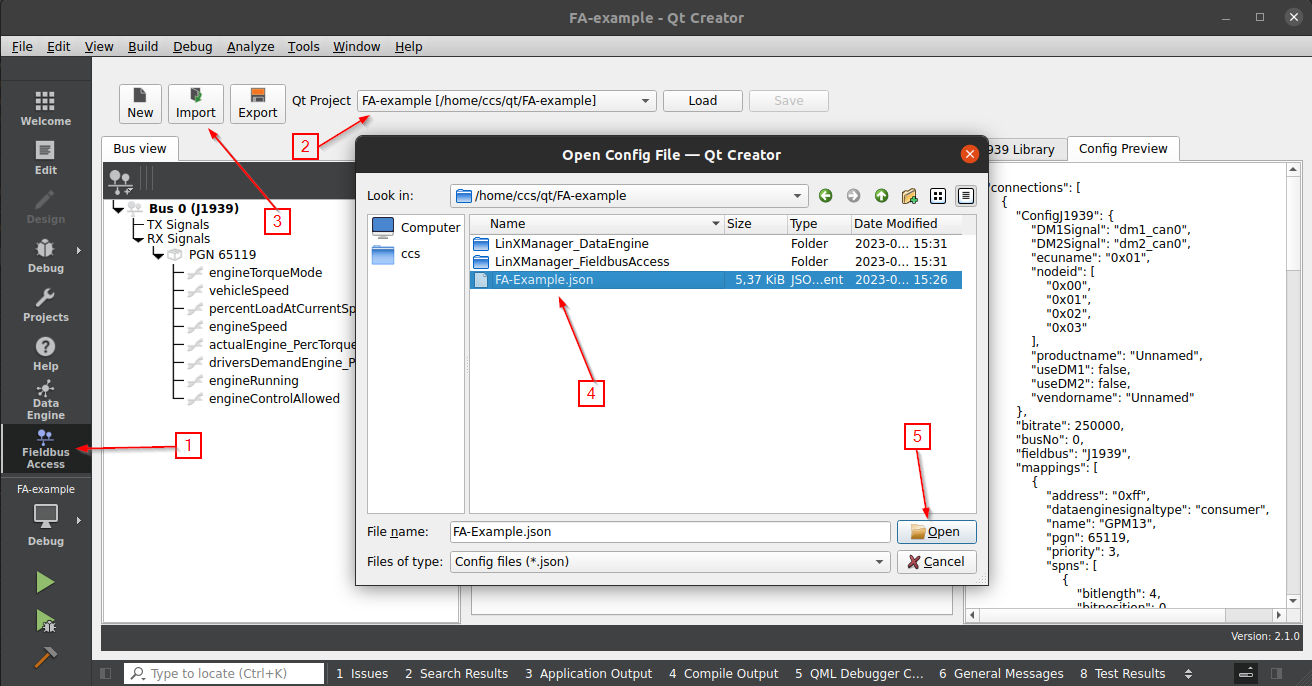

1. Open LinX Manager Fieldbus Access from the mode selector.

2. Select the project from the project selector drop-down menu which should be updated.

3. Press on the “Import” button located in the top bar.

4. Locate a LinX Manager Fieldbus Access configuration (*.json) to import.

5. Project is updated with the content read from the configuration.

Create multiple CAN buses

Fieldbus Access can handle communication with multiple CAN buses at the same time.

1. Create a new CAN bus by pressing the add button and select “Add new J1939 bus”.

2. Repeat step one and create as many CAN buses that are needed.

3. Each new bus will by default be assigned the next free bus number (first instance is given 0, next 1…). Adjust when needed.

Create custom J1939 PGNs

Custom PGNs is supported if a certain PGN is not available in the library or the CAN network include nodes which use customer specific PGNs.

1. Create a new CAN bus by pressing the add button and select “Add new J1939 bus”.

2. Select “RX Signals” in “Bus view” and press to create a new PGN.

3. Select the created PGN in the “Bus view” and press to create new SPNs for the PGN.

4. Update PGN and SPNs with information about the PGN and associated SPNs.

An example how to create a custom PGN can be found in J1939 examples.

Receive and transmit PGN with dynamic length

Certain parameter groups may require more than the 8 bytes supported by the CAN standard. Packaging and reassembly of messages larger than 8 bytes (up 1785 bytes) is all taken care of by the Fieldbus Access runtime.

Reception and transmission of PGNs which require more than 8 bytes is achieved by defining a single SPN in the PGN and assigning it BLOB as the datatype, for example:

SPN / DE Signal	DE Datatype	Byte Pos.	Bit Pos.	Bit Len.	Gain	Offset
serialNr	BLOB	0	0	64	1	0

A SPN which is configured as BLOB, it will carry the source address in the first byte when the application receives it. This is useful if the SPN can be received from multiple sources.

Byte	Data description
0	Source address
1-N	Message data

It is required to set transmission mode to “Change of state” for PGNs which have message lengths larger than 8 bytes.

Import J1939 DBC database

1. Create a J1939 bus if not already created (this will display the “J1939 Library” tab in the right-most panel).

2. Press “Import Library”.

3. Locate DBC to import and press Open.

4. Library is populated with content found in the DBC.

5. Drag and drop PGNs from the library to the TX/RX panel

6. Configuration is updated with information from each dropped PGN.

Access signals from the UI

QML

Qt projects based on the CrossControl Qt Quick 2 Application project template are prepared to work directly with the configurator. LinX Manager Fieldbus Access injects main.cpp with the required code to make the configured signals available directly in QML. Each configured signal is available as a Q_PROPERTY in the DataEngine class. The instance is accessible in QML via the context property called dataEngine.

QQuickView *view = new QQuickView;
// <LINX MANAGER> //
...
DataEngine dataEngineContext;
qmlRegisterUncreatableType<DataEngine>("CrossControl", 1,0, "DataEngine", "Don't instance DataEngine");
view->rootContext()->setContextProperty("dataEngine", &dataEngineContext);
// </LINX MANAGER> //

Read signals from QML

Text {
    text: dataEngine.engineRPM.value
}

Gauge {
    minimumValue: 0
    maximumValue: 100
    value: dataEngine.oilPressure.value
}

StatusIndicator {
    active: dataEngine.engineError.value
    color: "red"
}

Write signals from QML

Slider {
    from: 0
    to: 100
    value: 50
    onValueChanged: dataEngine.heatLevel.value = value
}

Button {
    text: "Request stop"
    onPressed: dataEngine.requestStop.value = true
    onReleased: dataEngine.requestStop.value = false
}

Widget

The configurator has basic support for Widget projects based on the CrossControl Qt Widget Application project template. Generated files are added to the project (headers and classes needs to be imported manually):

Read and write signals from widgets

Example how to add DataEngine to widget class Application and connect two configured signals to local slots:

// application.h
#include "LinXManager_DataEngine/dataengine.h"
class Application : public QWidget
{
    Q_OBJECT

public:
    explicit Application(QWidget *parent = nullptr);
    ~Application();

public slots:
    void setEngineRpm(int value);
    void setOilPressure(int value);

private:
    Ui::Application *ui;
    DataEngine dataEngine;
};

// application.cpp
#include "application.h"
#include "ui_application.h"

Application::Application(QWidget *parent) : QWidget(parent), ui(new Ui::Application)
{
    ui->setupUi(this);
    connect(dataEngine.engineRpm(), &IntConsumerSignal::valueChanged,this,&Application::setEngineRpm);
    connect(dataEngine.oilPressure(), &IntConsumerSignal::valueChanged,this,&Application::setOilPressure);
}

Receive and transmit CANopen PDO

Create one or more signals. They could be of type transmit or receive. In the Transmit tab, right mouse click and create a new transmit signal.

DE Signal	DE Datatype	Gain	Offset	OD Index	OD Subindex
newSignal	INT	1	0	2270	1

Next we want to map this signal to a TPDO. In the TPDO mapping tab, right mouse click and “Add a new PDO”.

PDO Name	COB-ID	Tranmission Type	SYNCs	Inhibit T	Event T	Tot b.
TPDO_1	$NODEID+0x180	Cyclic-Synchronous	10			0

Then add the created signal to the PDO. On the TPDO_1, right mouse click and “Add signal”.

PDO Name	COB-ID	Tranmission Type	SYNCs	Inhibit T	Event T	Tot b.
TPDO_1	$NODEID+0x180	Cyclic-Synchronous	10			32
newSignal	2270	1	INT			32

Double click the signal name newSignal for a list of possible signals to select from (created transmit signals if in TPDO tab). Edit signal and PDO values as needed.

Set default values

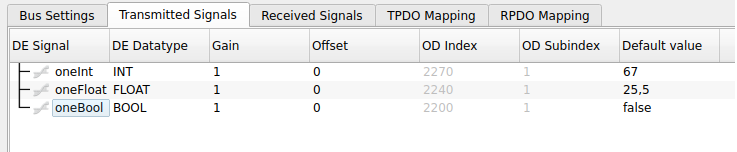

You can also access and set default values of data engine signals via the fieldbus access plugin. Below you see some examples of setting signals. Tx signals will be pushed on the bus as soon as the CANopen node are up and running and the proper SYNC signals are received. Signals without default value will be initialized to zero.

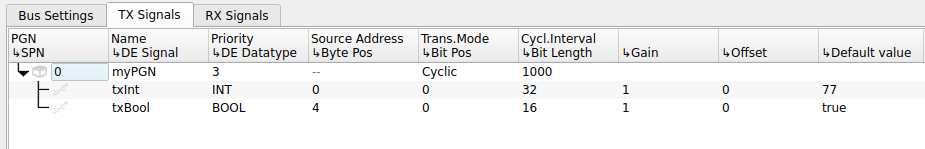

And you can do the same for j1939 signals. See below. Signals without default values will be initialized to 0xff which is standard for J1939.
